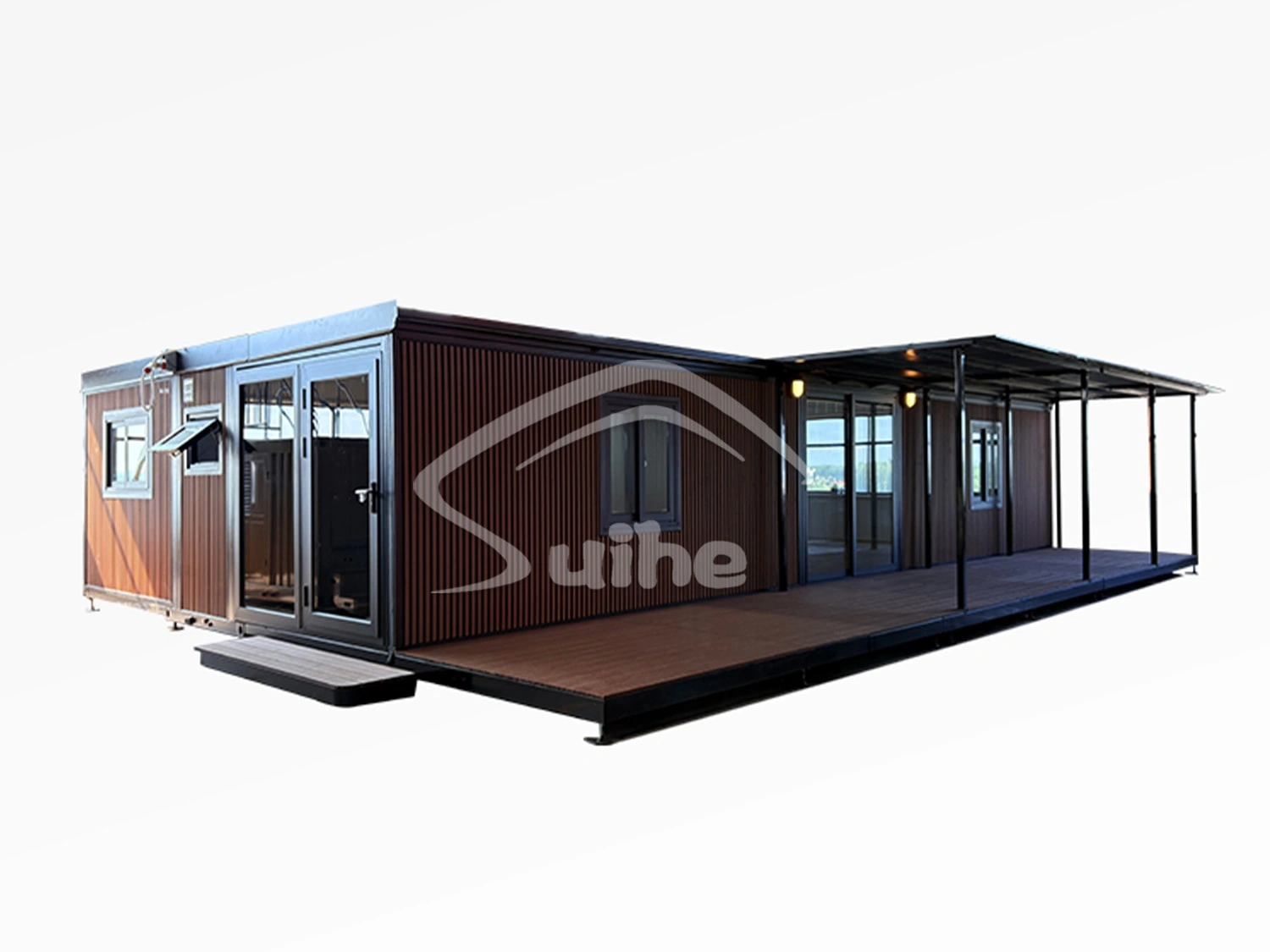

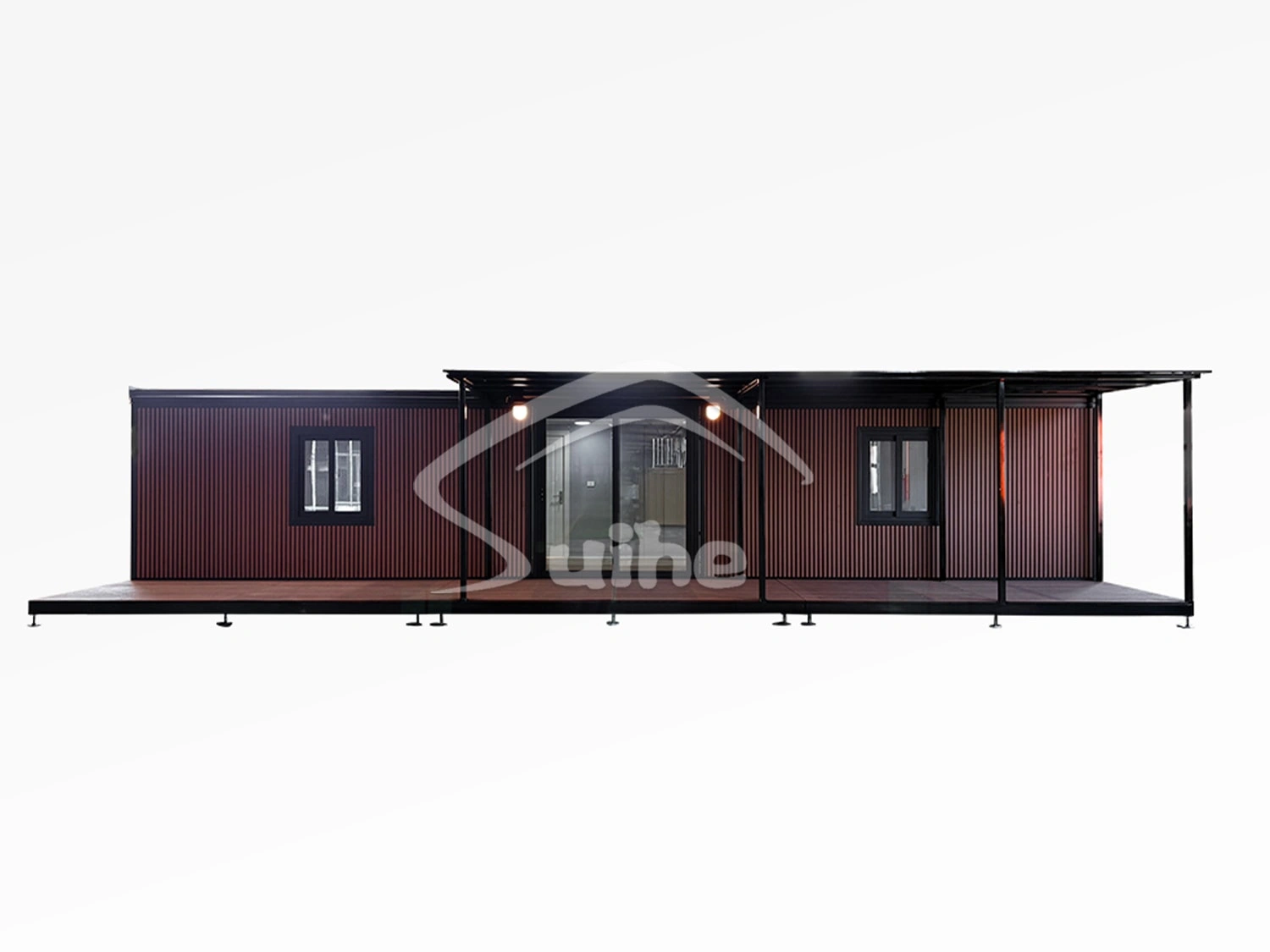

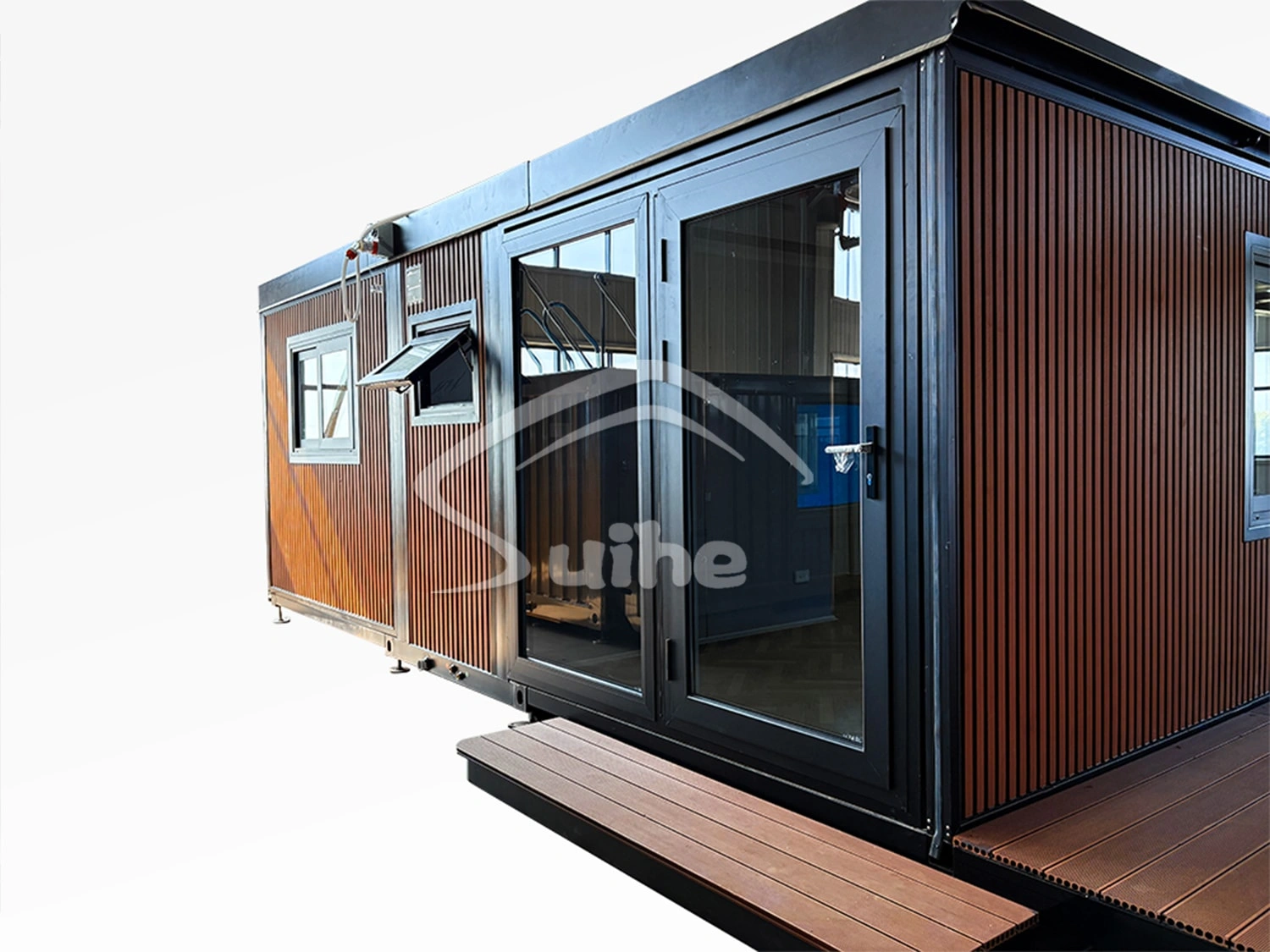

0209 Mobile House C06

INQUIRY NOW CONTACT US

Modern Design
High Quality
Fully Finished-Prefab
Easy Installation
Removable
Heat Insulation
Soundproof
Shock Resistance
Durability
Comfortable

Specification

Category	Standard
Product Name	0209 Mobile House C06
Overall dimensions	SIZE： L 11940 x W6345 x H2530MM

Overall weight
Major structure
Main body	Q235 steel frame / aluminum flat roof / insulated aluminum profile folding wall / main body zinc-rich base coating + frosted black (RAL9011)

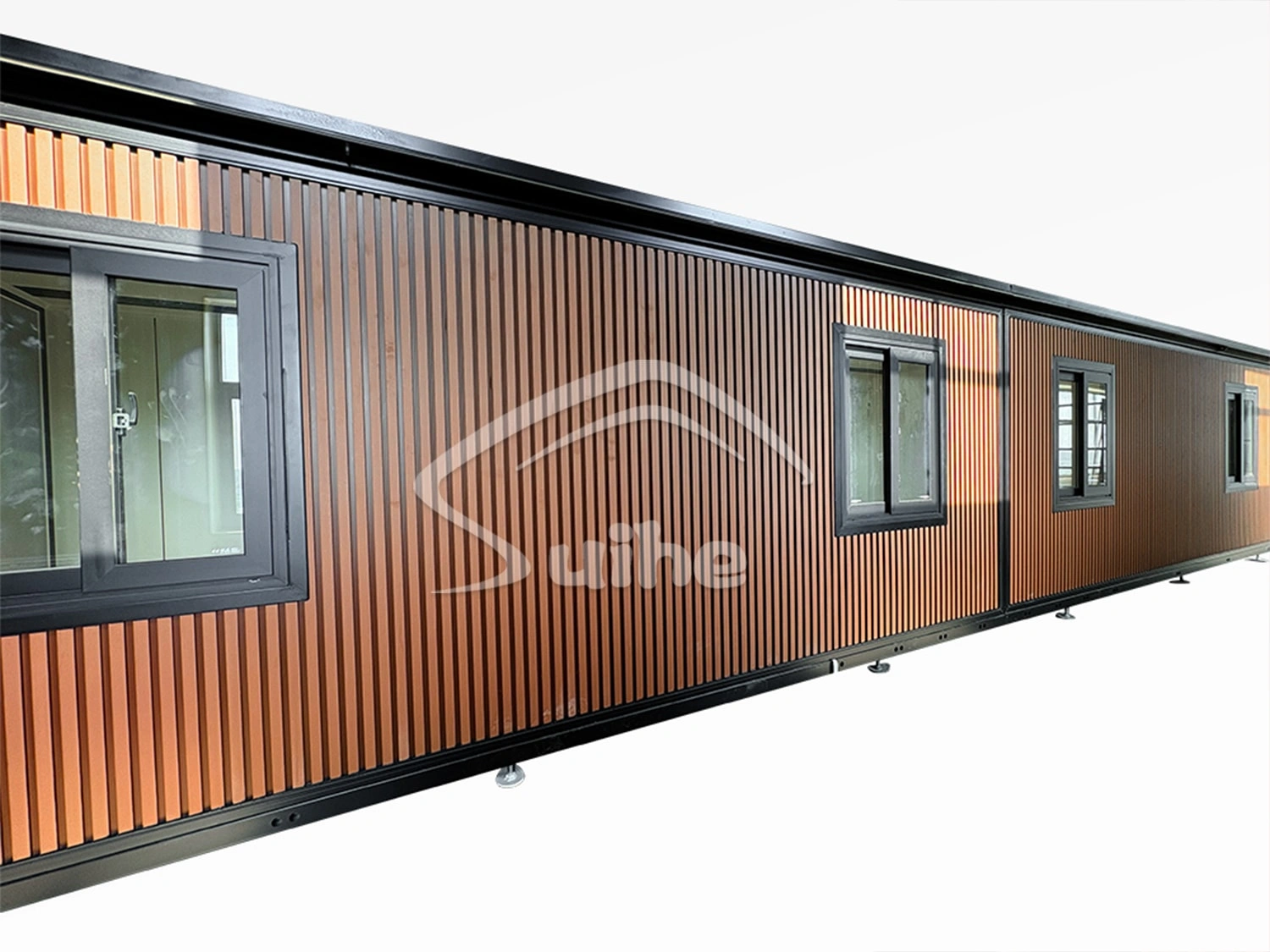

Wall panel	Fireproof B2 grade 50 EPS foam composite wall panel + 20 Great Wall panels
Roof	Fireproof B2 grade 70EPS foam composite wall panel + 9MM PVC profile board + 0.5MM aluminum sheet

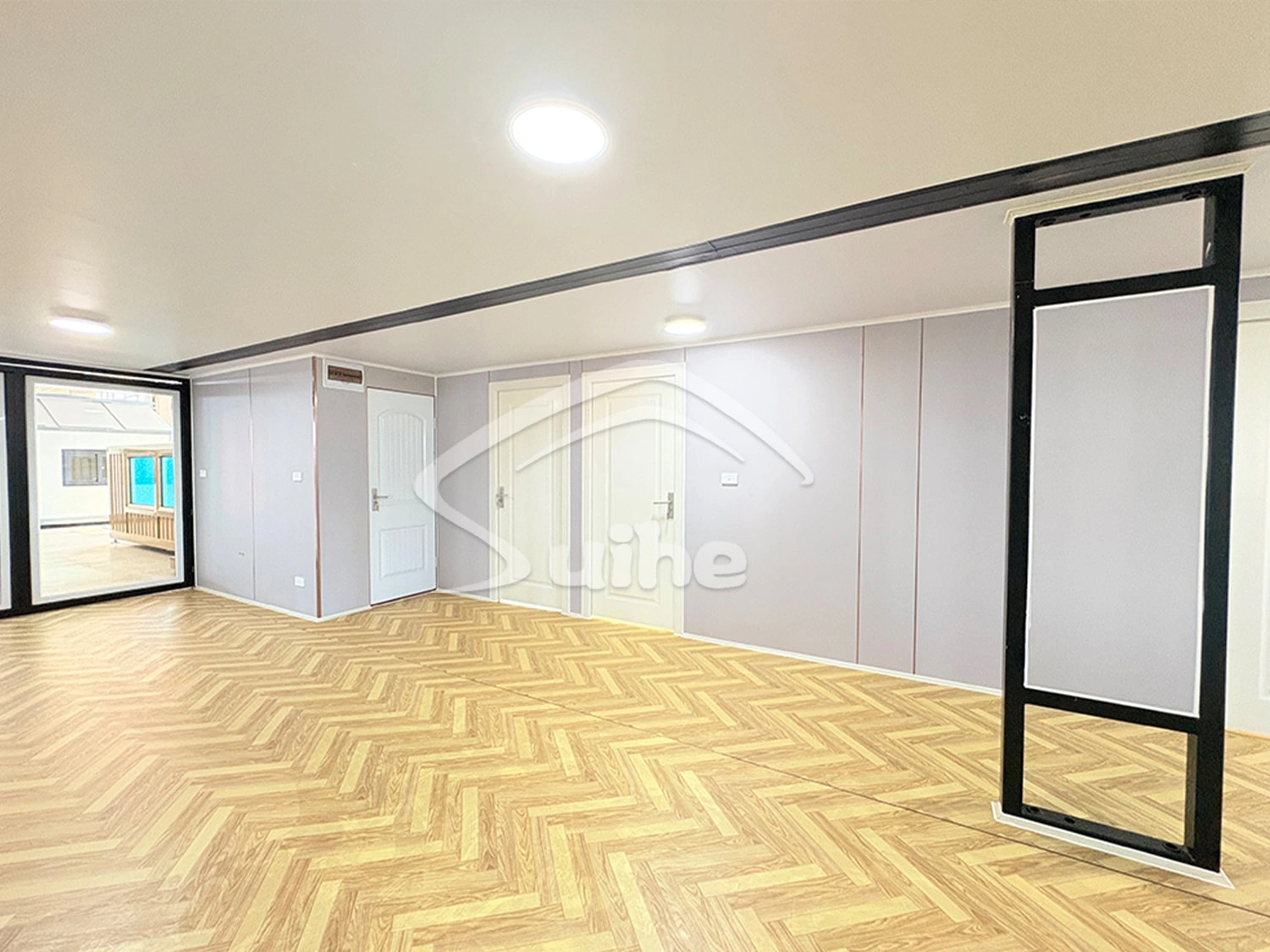

Floor	20MM fireproof board + 2MM anti-slip and wear-resistant floor leather
Door and window	Break-through aluminum outward-opening windows / Break-through aluminum sliding windows / Break-through aluminum sliding doors

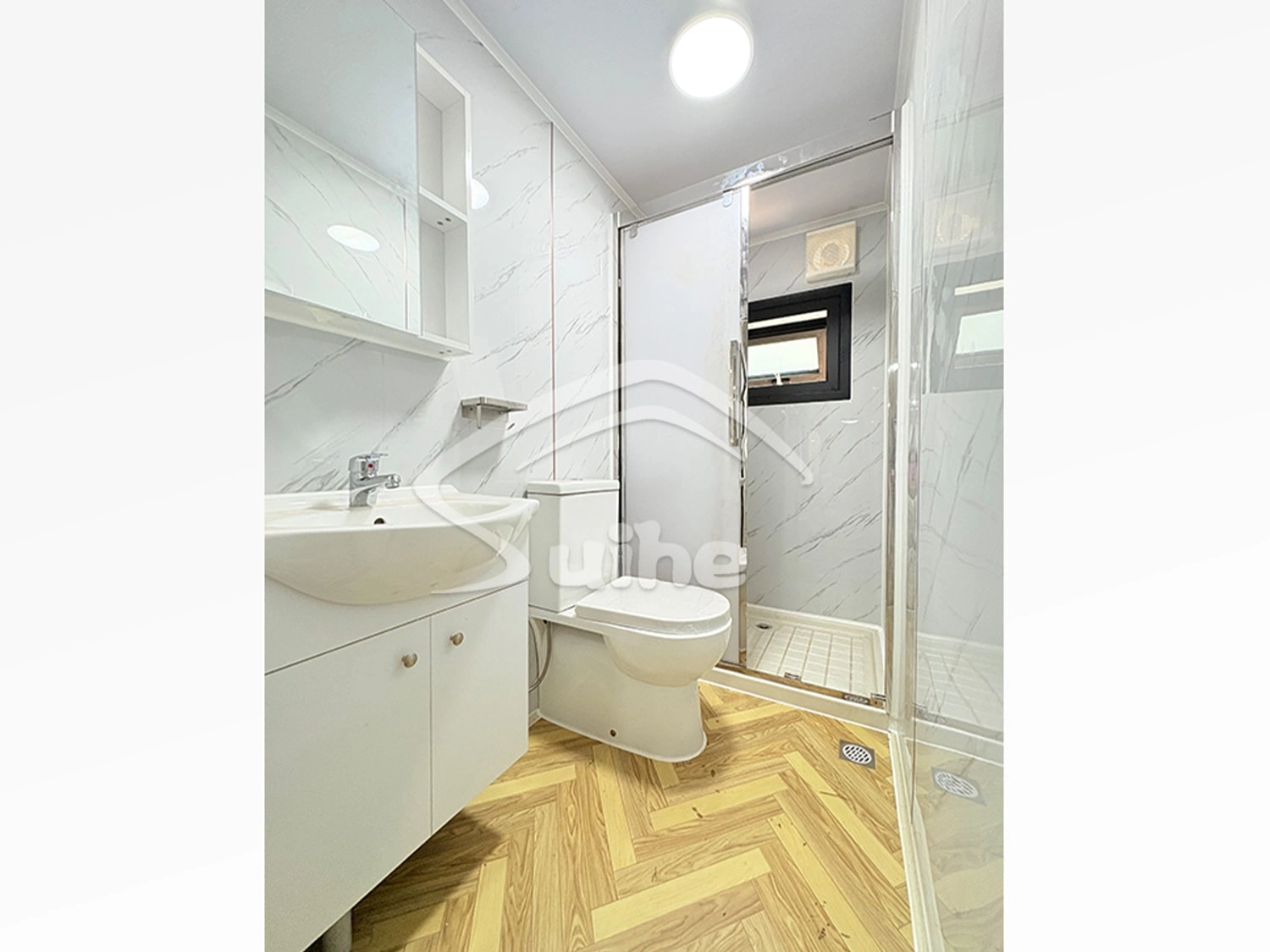

Bathroom	Ventilation fan / Toilet / Washbasin / Mirror cabinet / Shower head / Shower base basin / Acrylic sliding partition/Wooden bathroom door
Furniture	L-shaped combination cabinet (with double sink) / hanging cabinet
Water supply and drainage	Cold and hot water 1/2" / Drainage Φ50 / Toilet sewage Φ90
Power distribution	Circuit breaker / switch / socket / ceiling lamp

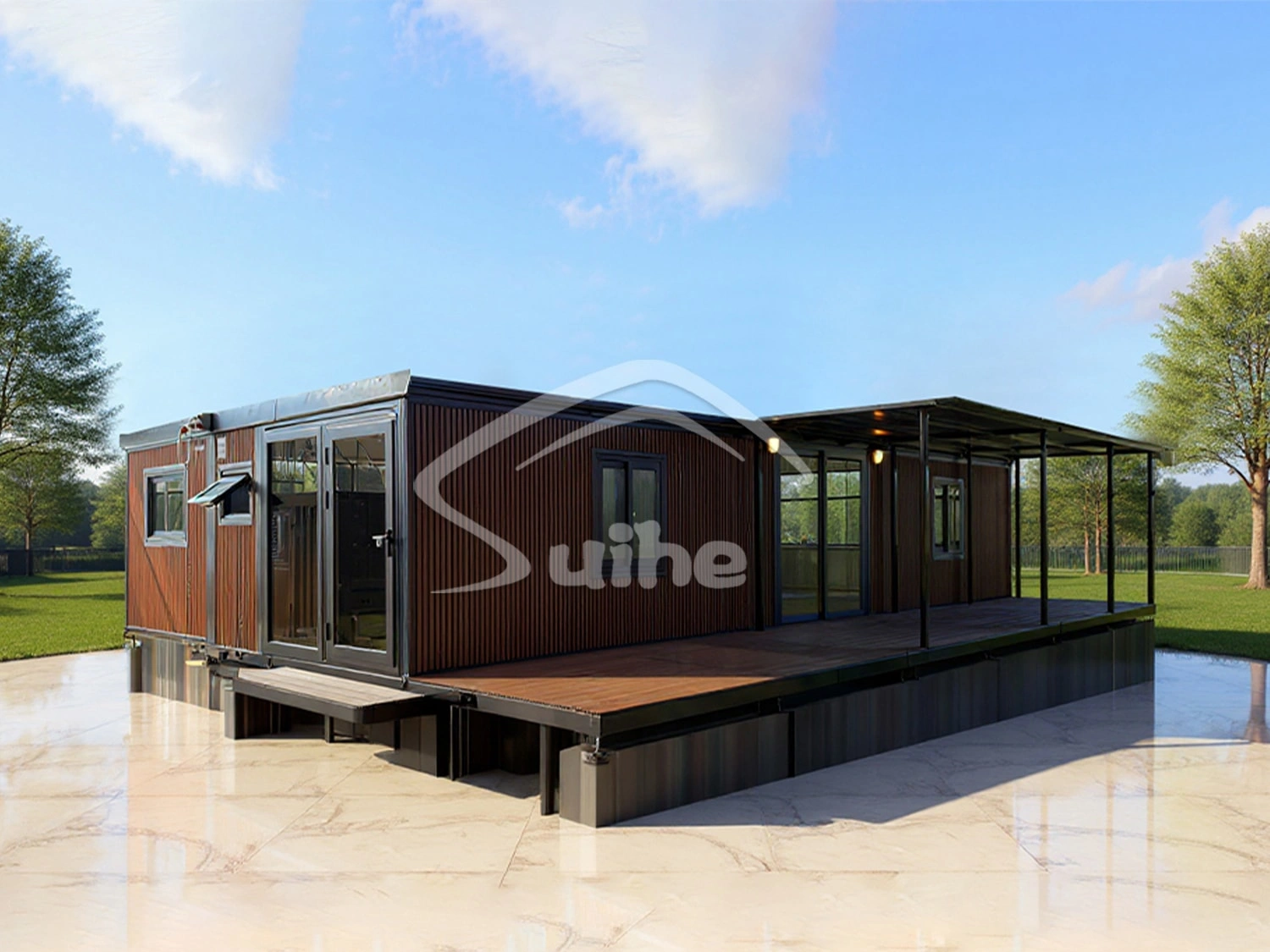

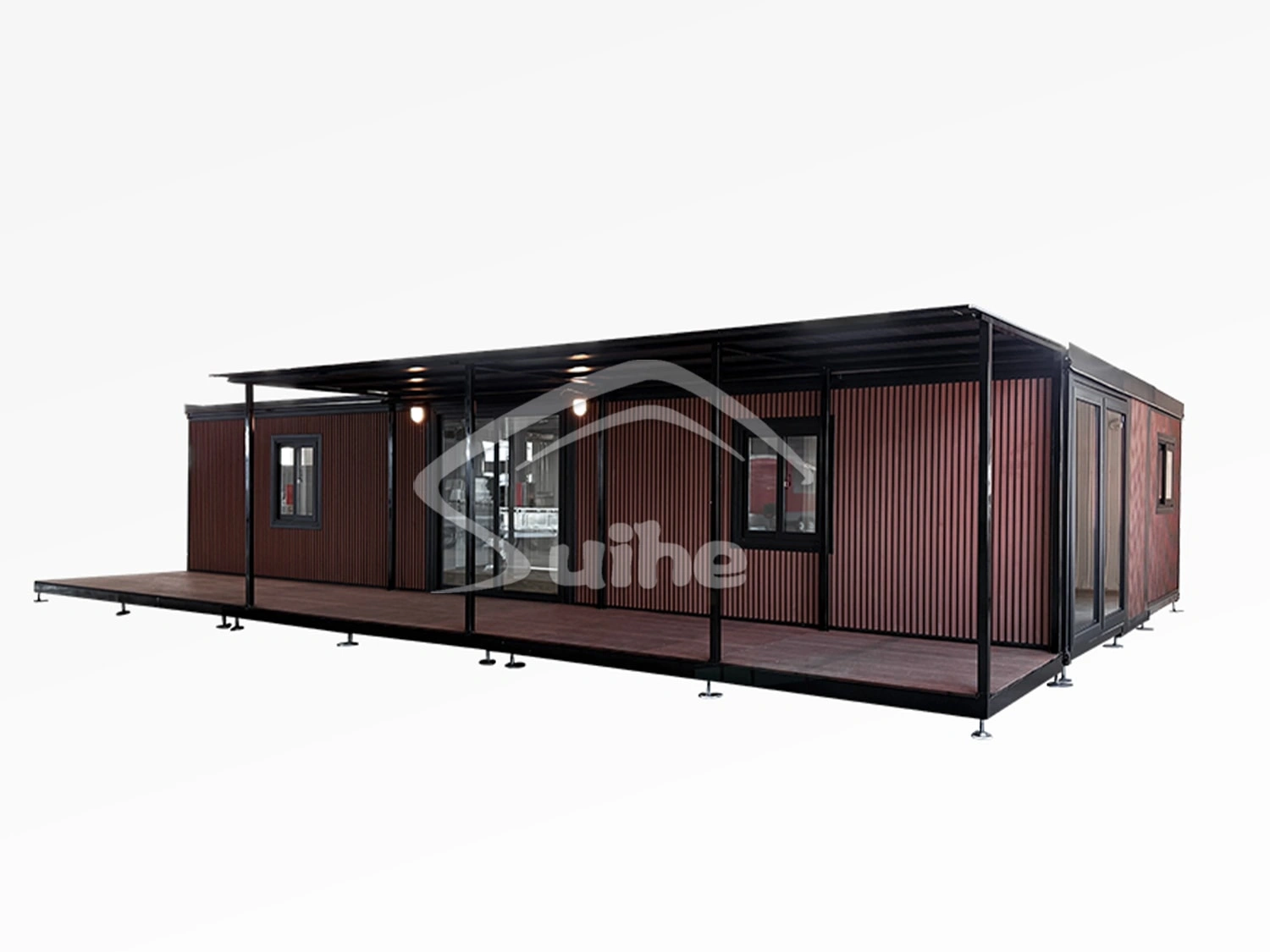

Accessories	Canopy / Terrace / Adjustable Base

Tips

Anchors

Anchors are required to secure your shelter
Auger anchors are recommended for dirt, gravel, and asphalt surfaces
Foot plates are included and are required for concrete, wood, and steel mounting (or any surface)

Fabric Colors

Grey
Dark Grey
Forest Green
Army Green
White

Additional Specifications

Comes with installation guide and customer service support
All parts are pre-drilled for easy assembly
Heavy duty rope for main cover tie down
Rope holes with heavy duty grommets for best durability
Side wind brace supports
Protective plastic end caps for exposed tube ends

Warranty For Customer Installations

All customer installed shelters have a warranty limited to failure of parts.
No shelters are covered under the warranty during high winds or heavy snow loads. The customer must be pro active in ensuring neither causes a structure failure. These conditions and care are listed under our installation guidelines.
The installation of a shelter is critical to how it will stand up to heavy winds and snow. If the manufacturers installation guidelines are not adhered to, failure of the shelter could result in high winds and heavy snowfalls. If in doubt about any of the installation processes, please contact our office.
Failure to do semi annual inspections of the shelter and tighten any loose straps or tension wires may cause issues with wind and snow.
