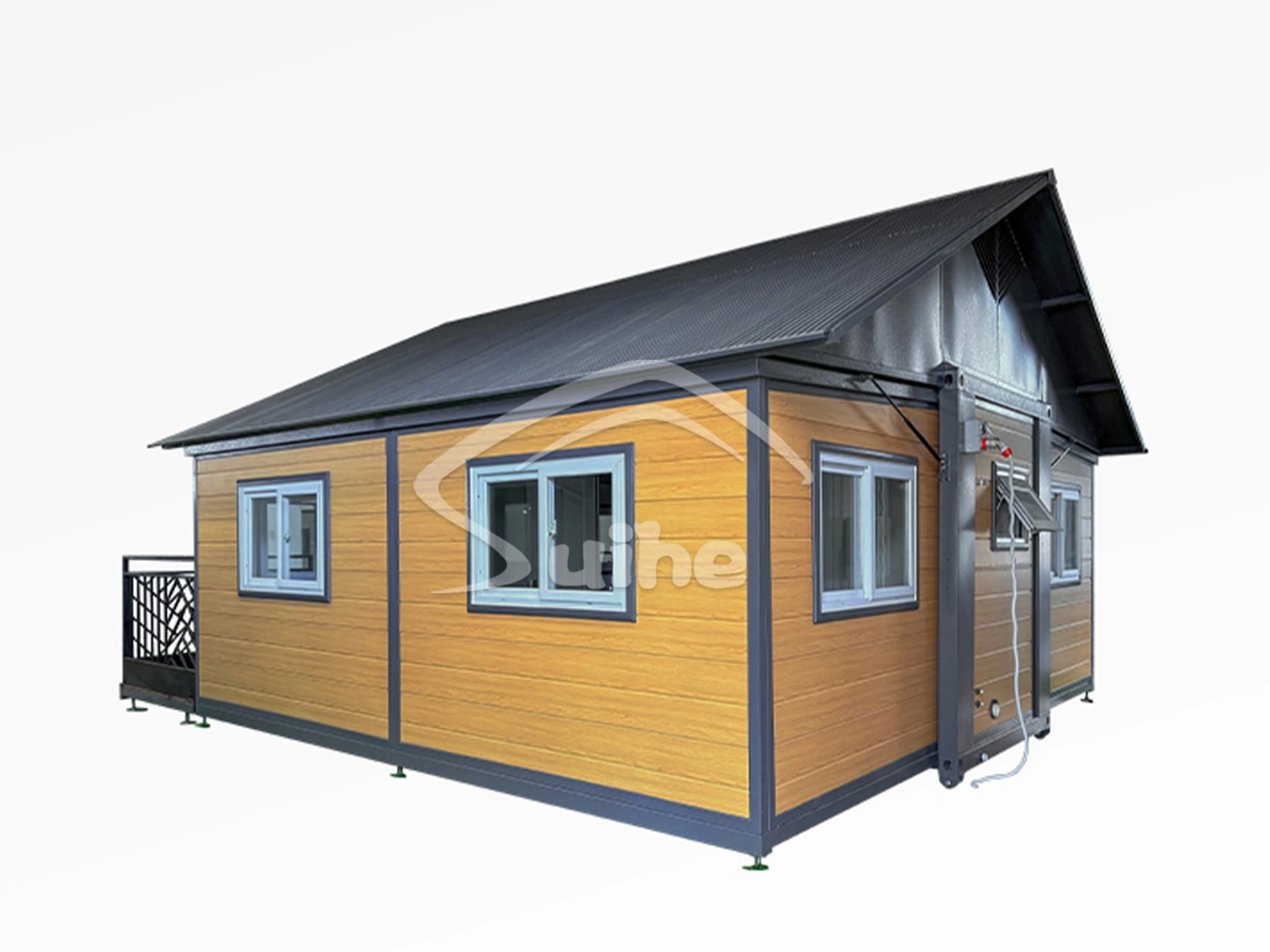

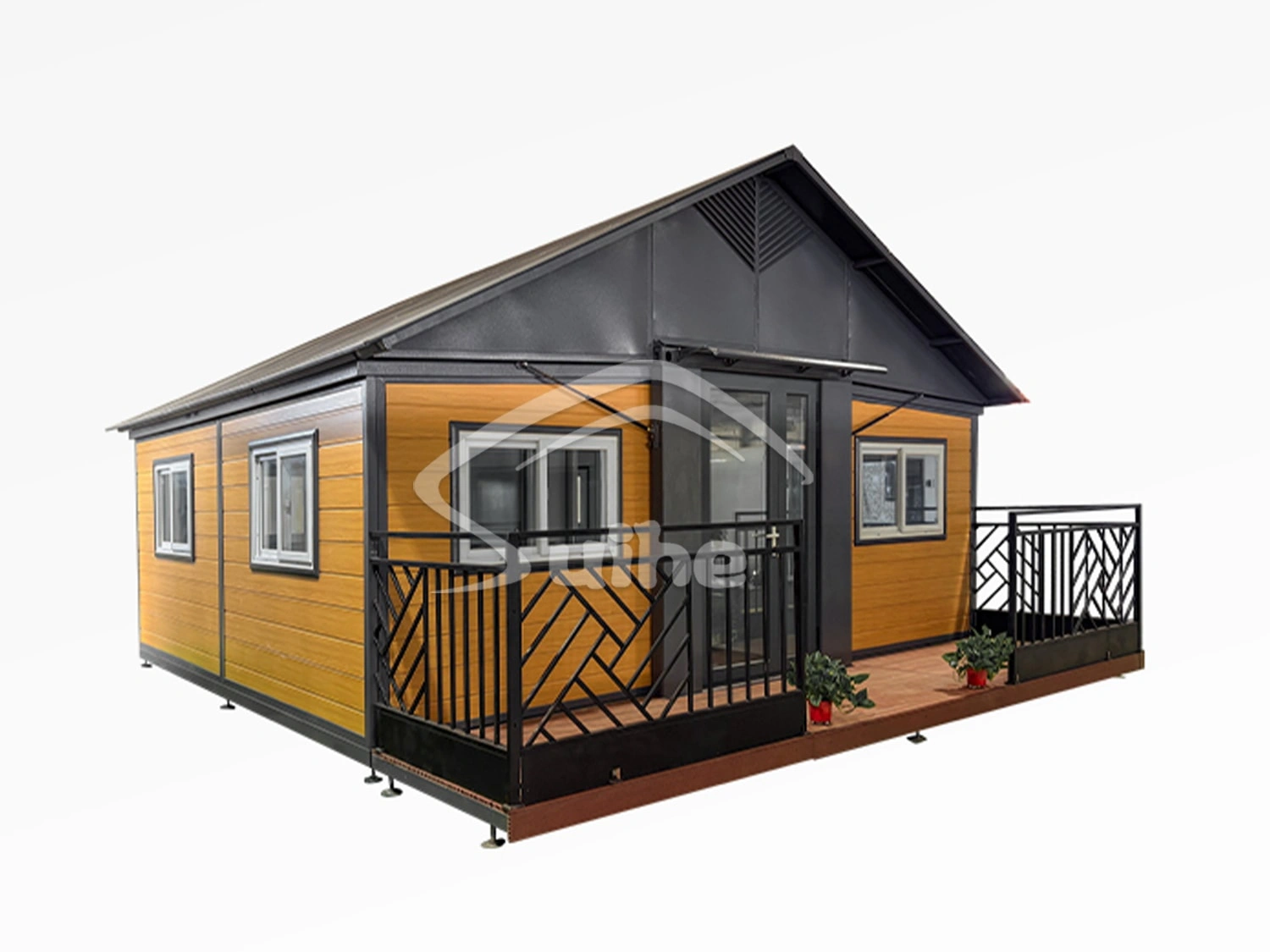

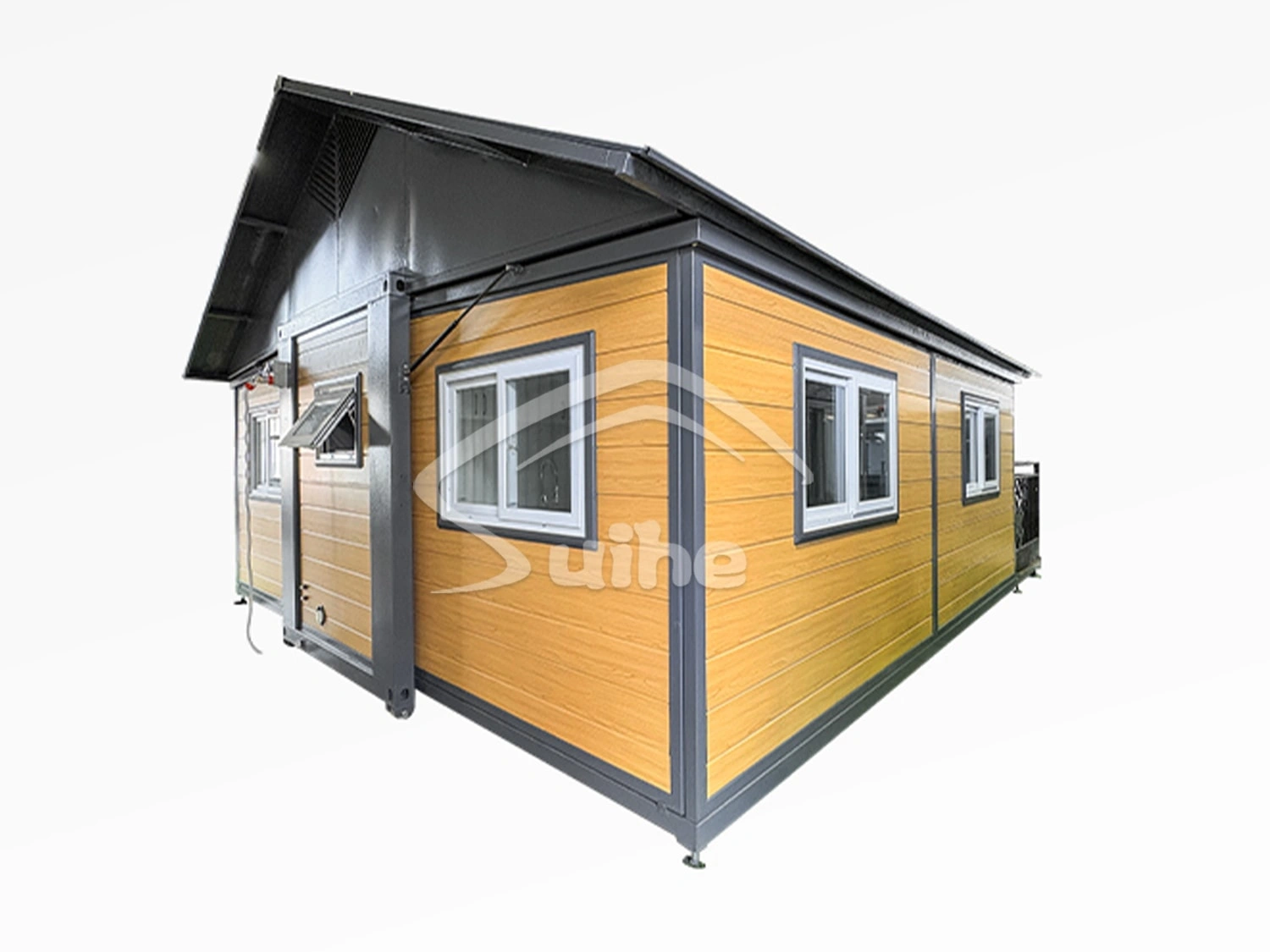

0206 Mobile House

INQUIRY NOW CONTACT US

Modern Design
High Quality
Fully Finished-Prefab
Easy Installation
Removable
Heat Insulation
Soundproof
Shock Resistance
Durability
Comfortable

Specification

Category	Standard
Product Name	0206 Mobile House
Overall dimensions	SIZE： L 6140 x W6195 x H2530MM

Overall weight
Major structure
Main body	Q235 steel frame / steel plate roof / main body zinc-rich coating + grey flake pink (RAL7015)
Wall panel	Fireproof B2 grade 38 EPS foam composite wall panel + 14 metal decorative panel
Roof	Fireproof B2 grade 40 EPS foam composite wall panel
Floor	20MM fireproof board + 2MM anti-slip and wear-resistant floor leather
Door and window	Break-through aluminum exterior sliding window / plastic steel sliding window / break-through aluminum double doors

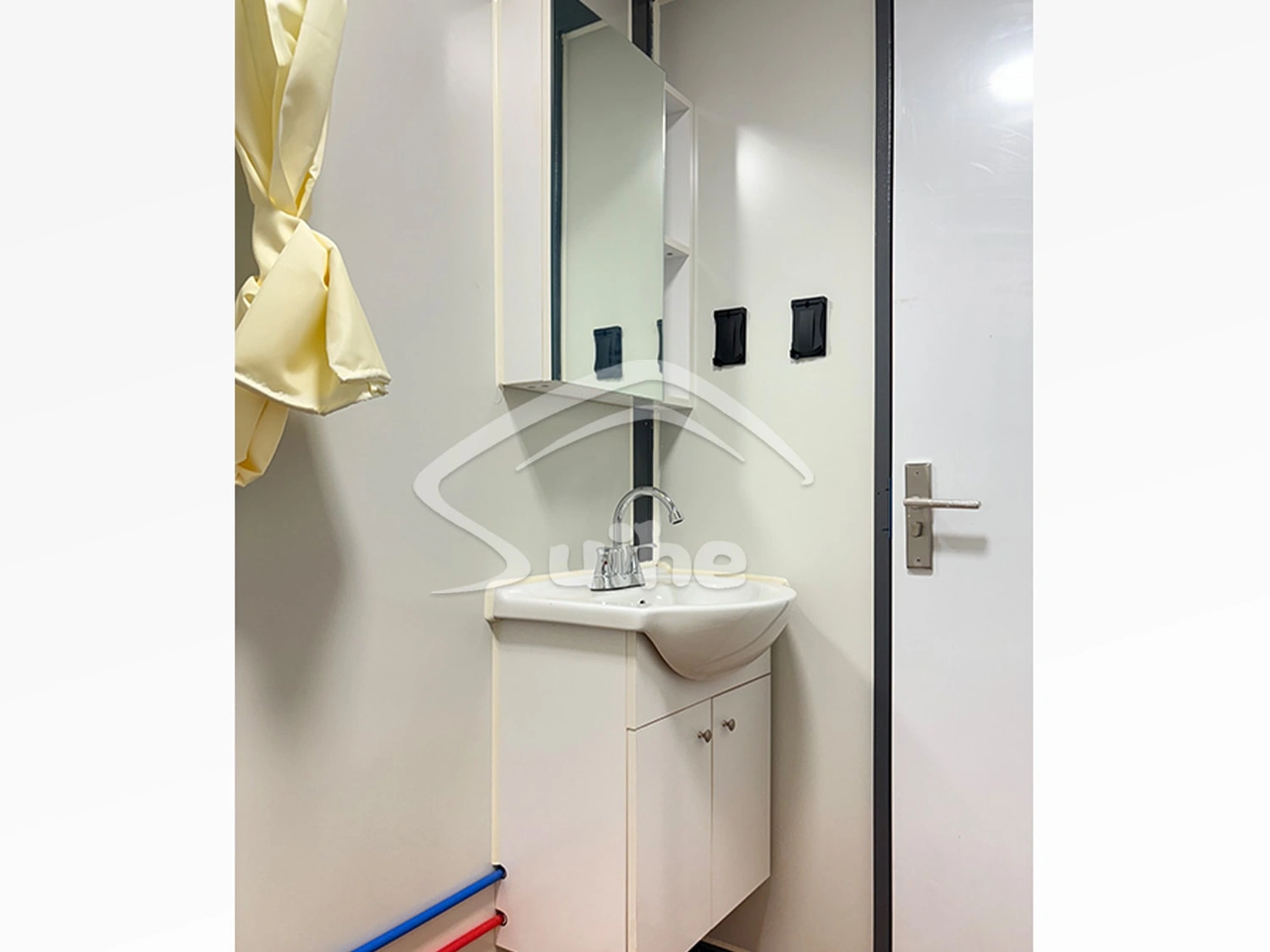

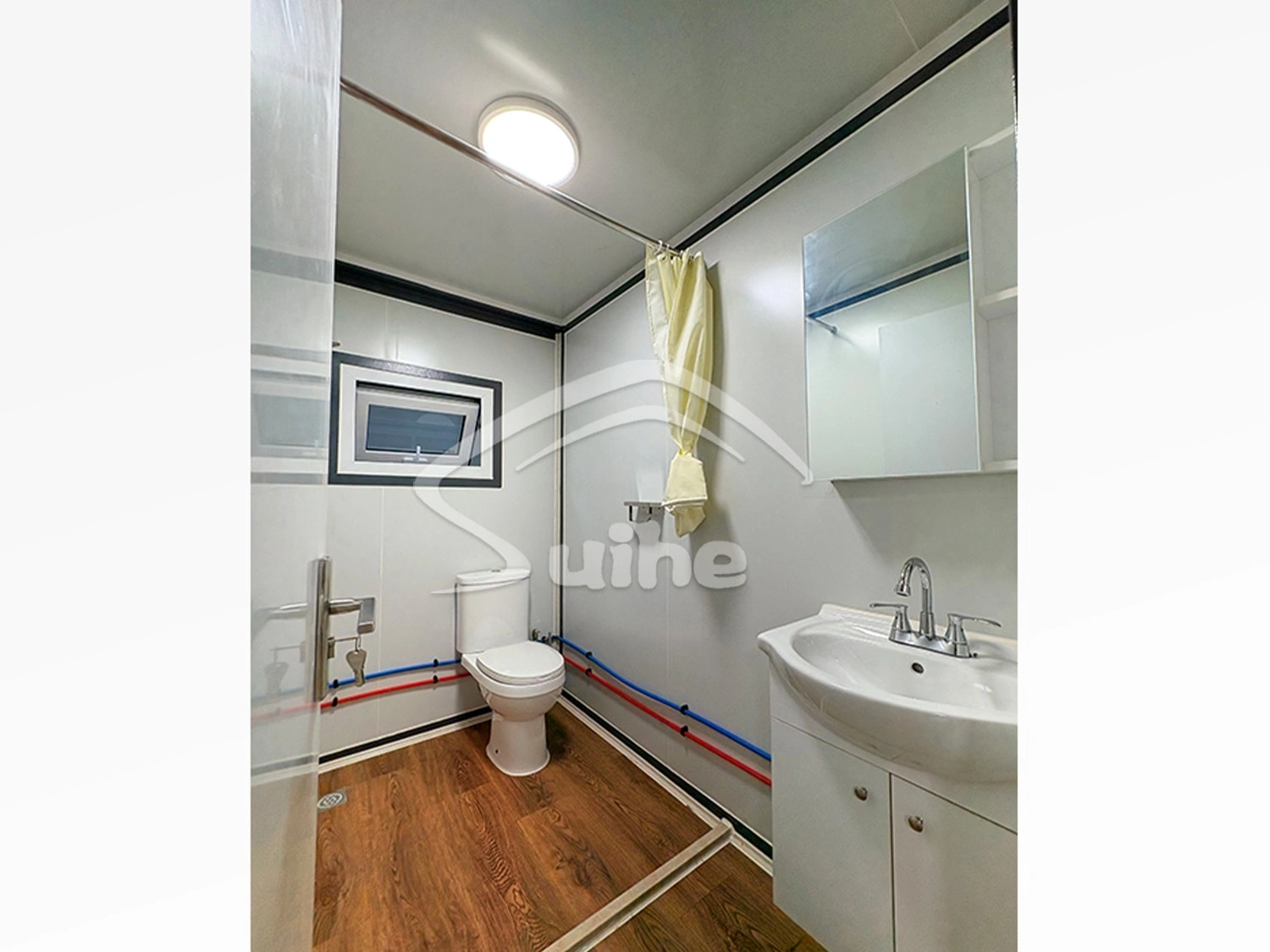

Bathroom	Ventilation fan / Toilet / Washbasin / Mirror cabinet / Shower head / Shower base basin / Shower partition / Floor drain / Wooden bathroom door / UV panel

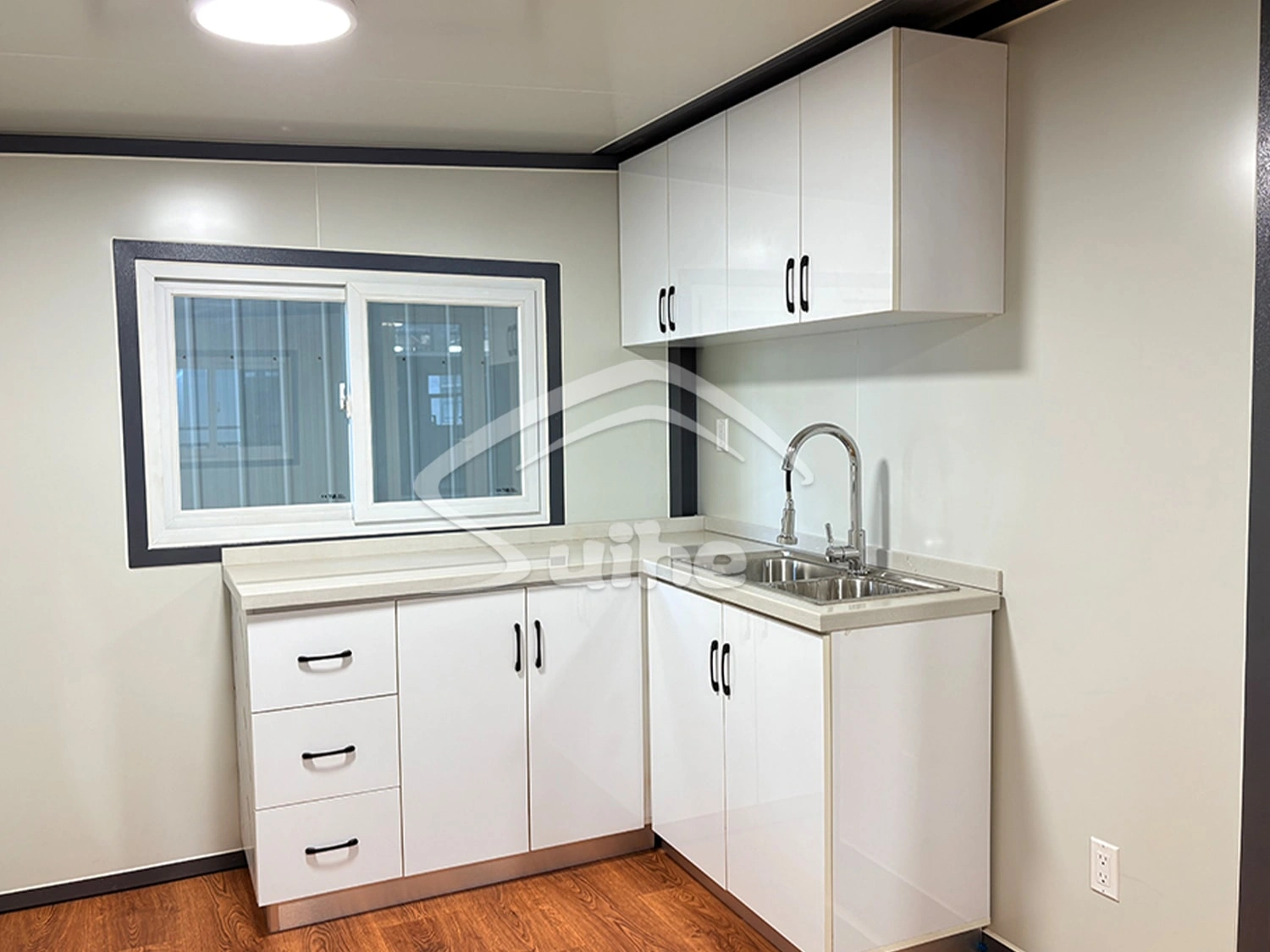

Furniture	L-shaped combination cabinet / hanging cabinet
Water supply and drainage	Cold and hot water 1/2" / Drainage Φ50 / Toilet sewage Φ90
Power distribution	Circuit breaker / switch / socket / ceiling lamp
Accessories	Canopy / Step / Adjustment base / Composite roof / Terrace / Guardrail

Tips

Anchors

Anchors are required to secure your shelter
Auger anchors are recommended for dirt, gravel, and asphalt surfaces
Foot plates are included and are required for concrete, wood, and steel mounting (or any surface)

Fabric Colors

Grey
Dark Grey
Forest Green
Army Green
White

Additional Specifications

Comes with installation guide and customer service support
All parts are pre-drilled for easy assembly
Heavy duty rope for main cover tie down
Rope holes with heavy duty grommets for best durability
Side wind brace supports
Protective plastic end caps for exposed tube ends

Warranty For Customer Installations

All customer installed shelters have a warranty limited to failure of parts.
No shelters are covered under the warranty during high winds or heavy snow loads. The customer must be pro active in ensuring neither causes a structure failure. These conditions and care are listed under our installation guidelines.
The installation of a shelter is critical to how it will stand up to heavy winds and snow. If the manufacturers installation guidelines are not adhered to, failure of the shelter could result in high winds and heavy snowfalls. If in doubt about any of the installation processes, please contact our office.
Failure to do semi annual inspections of the shelter and tighten any loose straps or tension wires may cause issues with wind and snow.

* We are working hard to ensure that the information provided on site product advertisements is accurate and up-to-date. We reserve the right to correct ad errors and/or omissions.
