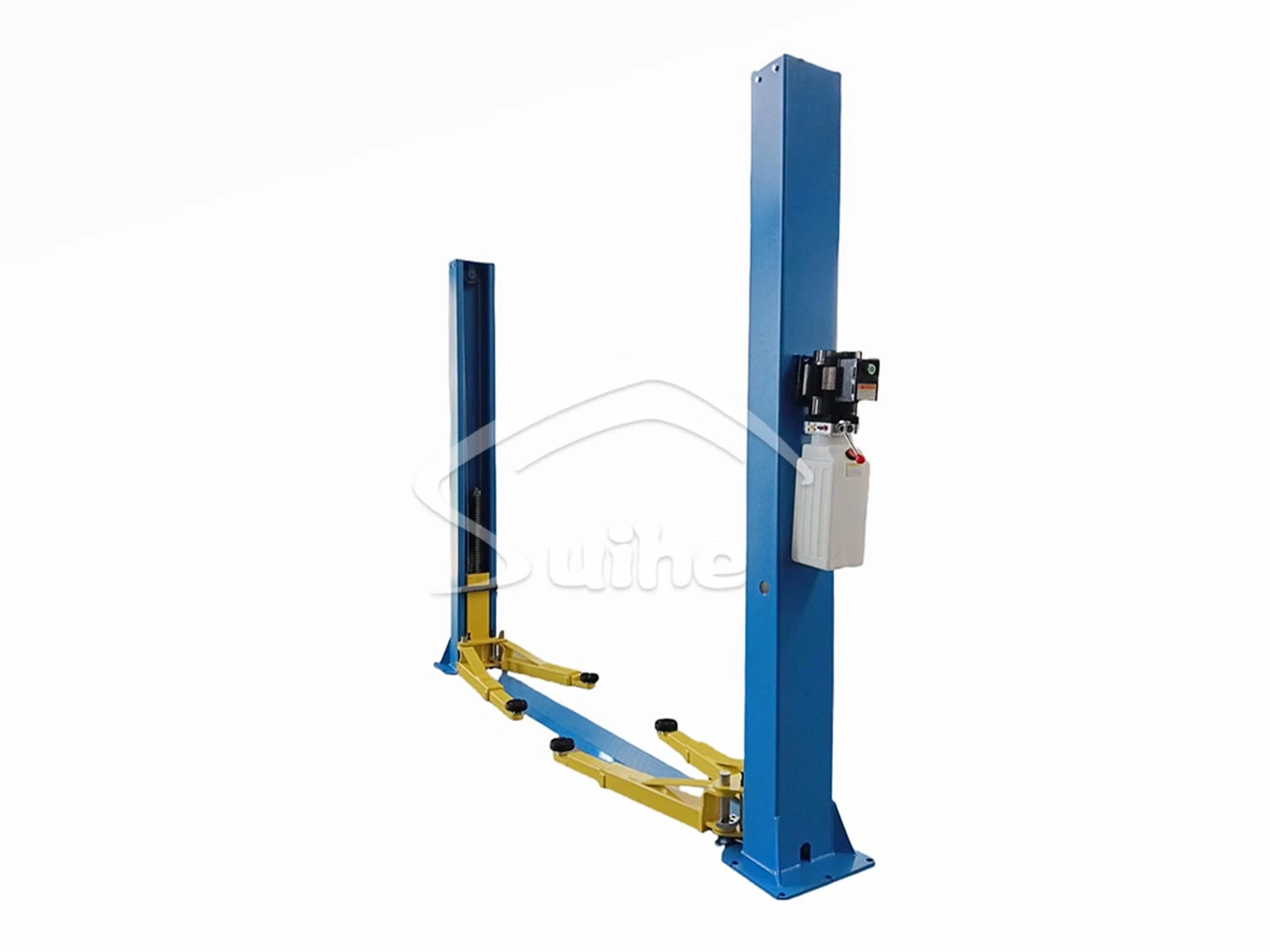

| CAR LIFT-KT-H105 | |
|---|---|
| Height overall | 2822mm |
| Full travel | >1630mm |
| Raising/ Lowering time | Approx. 50s |
| Lifting height max. | 1900mm |
| Lifting height min. | 105mm |
| Support arm reach | 800...1200mm |
| Inside columns | 2800mm |
| Drive-through clearance max. | 2495mm |
| Load capacity | 4500kg |
| Net weight | 565kg |
| Anchoring | M19*140 |
| Concrete grade min. | C20/25(DIN 1045:2001-07) |
| Motor power | 2.2kW |
| Rated current | 14.6A |
| Fuse protection | 16 A time delay |
| Power supply | 220V/380V 50HZ |
| Sound pressure level | ≤75dB(A) |
| Hydraulic pressure | 20MPa |
